JY(st)Y-mb Fire cable – 2 x 2 x 0.8 mm Copper / 75 ohms / Fireproof PVC Coating – TED Electric
Ted Electric’s fireproof JY(st)Y-mb cable is designed to withstand extreme heat temperatures while ensuring the safety of your critical applications. Sold at 100 m / 500 m roll. Contact for more information.
Product code: TED002464 / TED002471

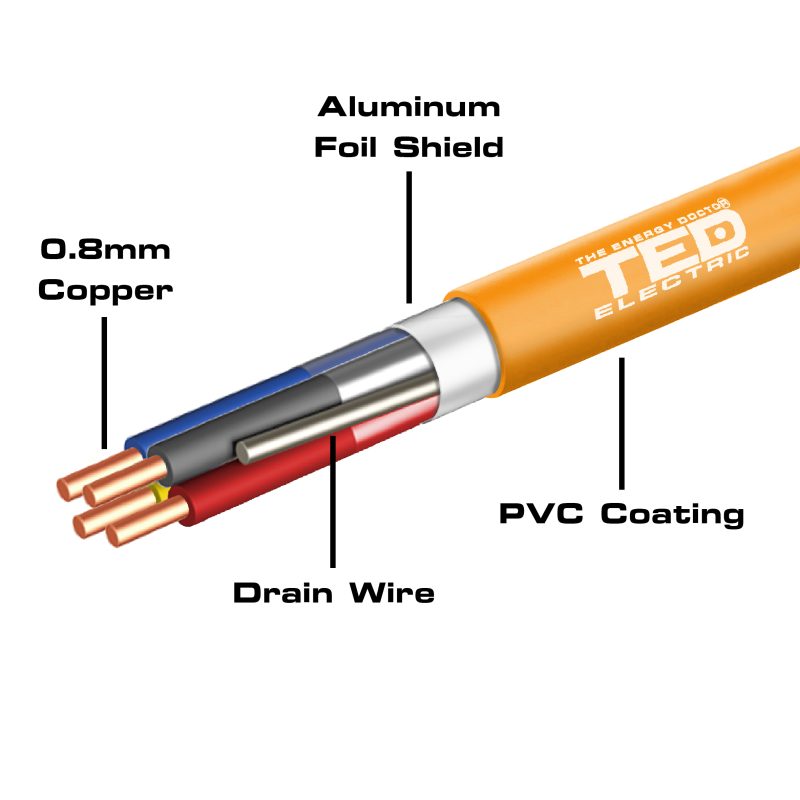

Technical Specification
| Cable Type | JY(st)Y-mb Fire Cable |
|---|---|
| Conductor | 1 x 2 x 0.8 mm Full Copper |
| Shielding | Aluminum Foil |
| Coating | Fireproof PVC |
| Electric Resistence | 75 Ohms/km |
| Minimum Bending Radius | 80 mm |
| Weight | 68 kg/km |
| Length | 100 m/roll |
Application & Use
This cable is designed to maintain its functionality for a specific duration during a fire; Commonly used in buildings and installations where the continuity of electrical circuits is crucial for safety, emergency response, or the preservation of critical functions.
Emergency Systems
Data Centers
Hospitals & Laboratories
