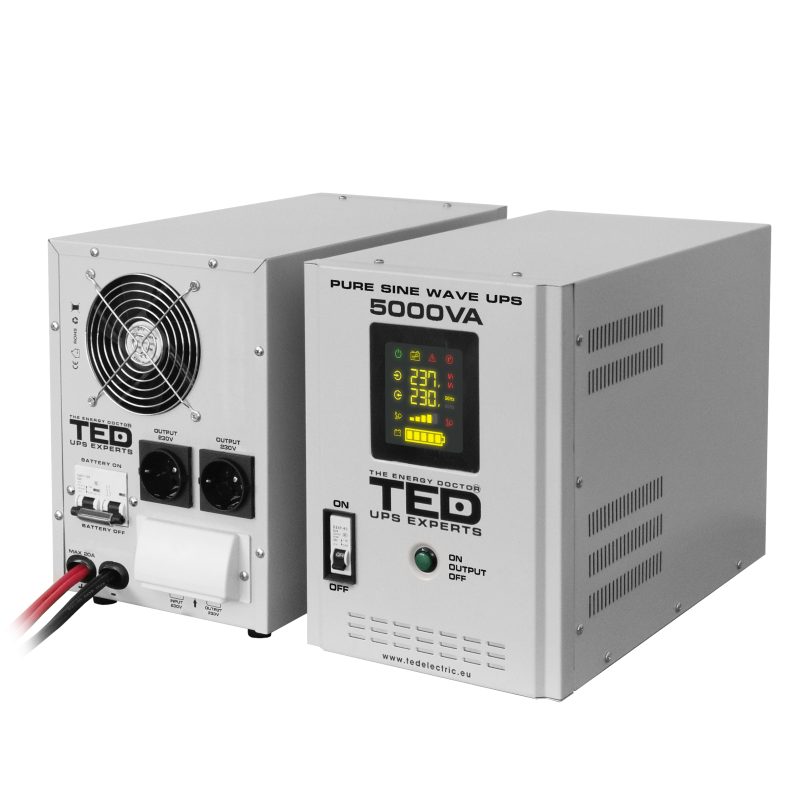

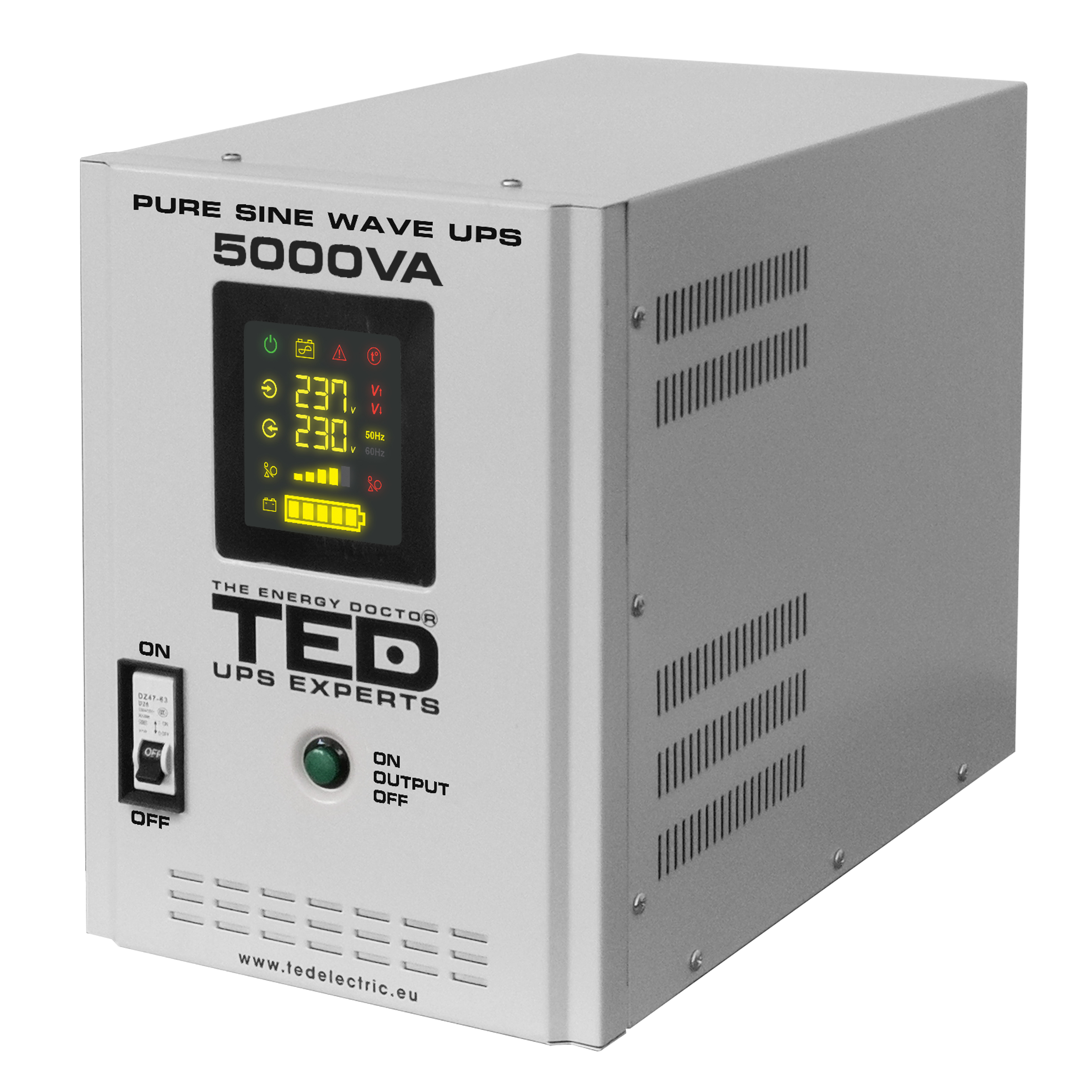

5000VA 3500W UPS Extended Runtime for Gas Boilers – LCD Display – 3 x Outputs – TED Electric

Single phase UPS specifically designed for gas boilers with extended runtime & external batteries with automatic recharge. It provides stable (integrated AVR) 230V output though 2 Schuko sockets. Internal heavy duty copper transformer &  microprocessor drives high reliability over time.

Product code: TED001689

Technical Specification


5000 VA / 3500 W

Input Voltage / Frequency

140-290 VAC / 45-65 Hz

Output Voltage / Frequency

230 VAC / 50 Hz

Output Connectors

2 x Schuko + 1x Terminal Block

Wave Form

Pure Sine Wave

Power Factor / Transfer Time

0.85 / < 4 ms

Battery Type

4 x 12 V (external)

Dimensions (L x W x H)

219 x 455 x 297 mm


22 kg

Noise Level

< 56 dB

Remote Management


Application & Use

Extended Runtime UPS  are specifically built for gas boilers. However, they can be used in a multitude of applications around the house.


Gas Boilers


Water Pumps

Household Electronics


Fuel Generator Compatible

Komplet 6 Protection

Komplet 6 is TED Electric's safety standard. We offer extensive protection for our products & your electronic devices

Over Voltage

Under Voltage



Short Circuit


Interested in getting more details about this product or find a distribuitor?
