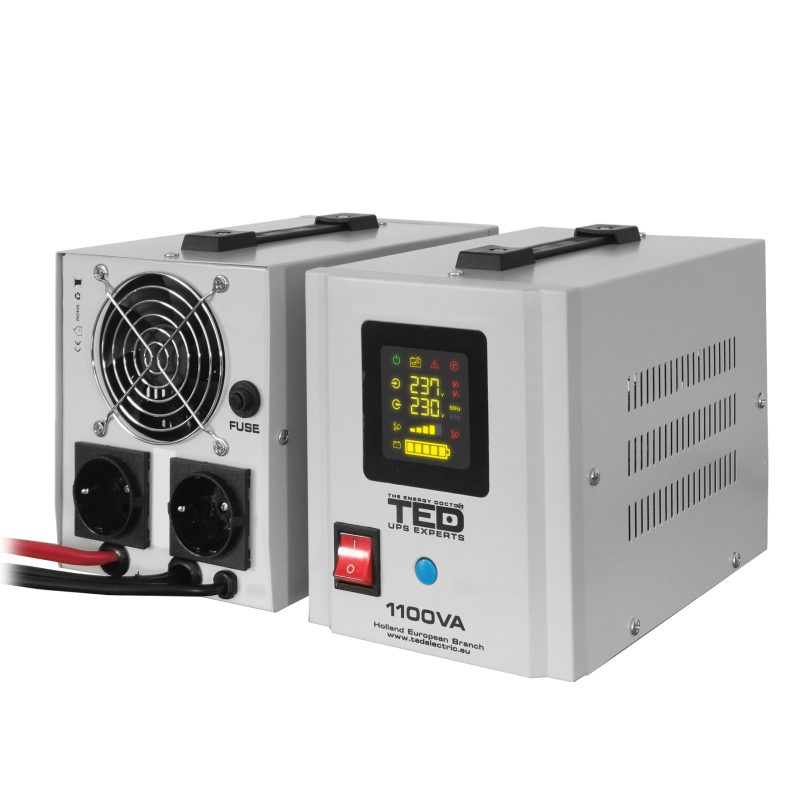

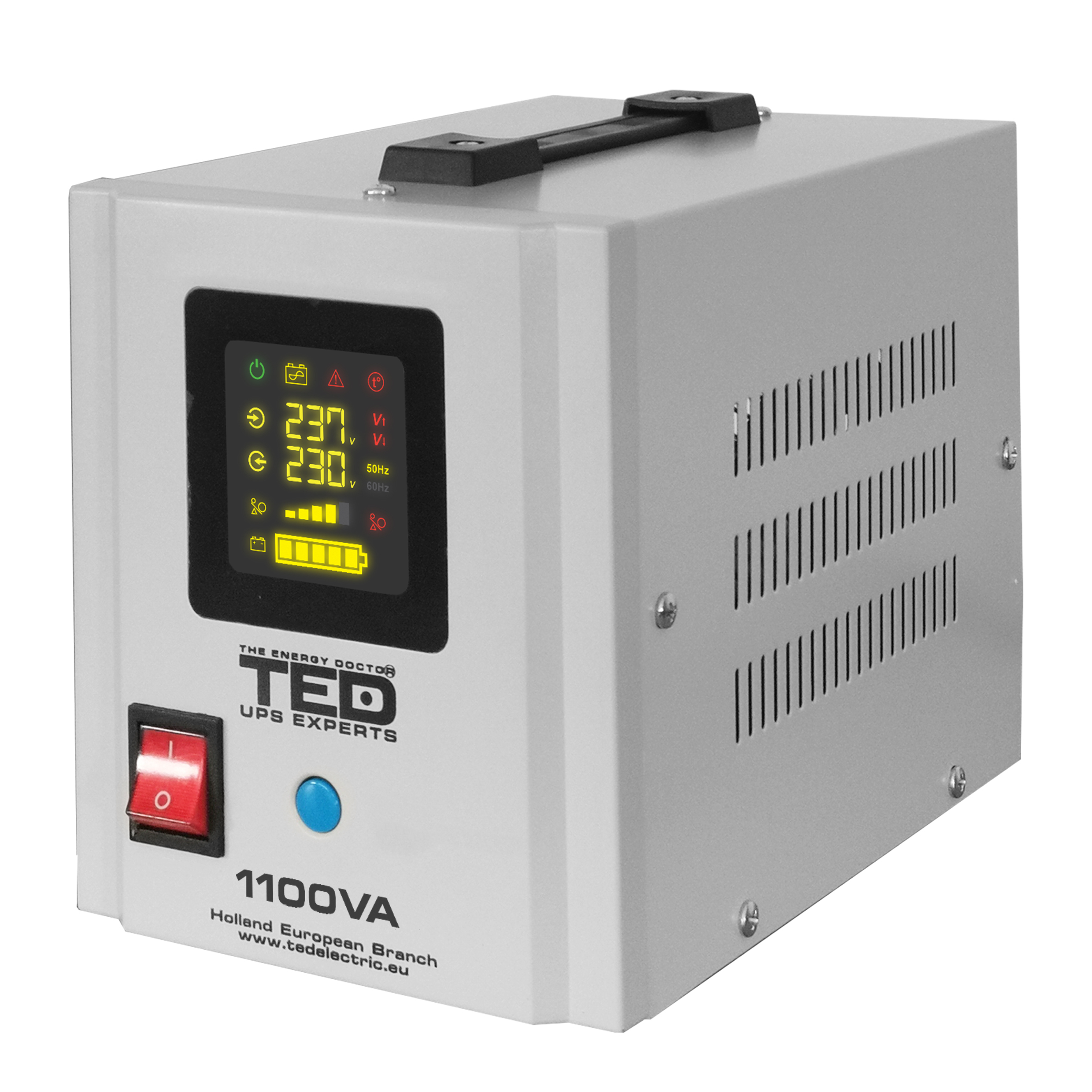

1100VA 700W UPS Extended Runtime for Gas Boilers – LCD Display – 2 x Schuko – TED Electric

Single phase UPS specifically designed for gas boilers with extended runtime & external batteries with automatic recharge. It provides stable (integrated AVR) 230V output though 2 Schuko sockets. Internal heavy duty copper transformer &  microprocessor drives high reliability over time. Top handle is great for easy carrying.

Product code: TED000323

Technical Specification


1100 VA / 700 W

Input Voltage / Frequency

140-290 VAC / 45-65 Hz

Output Voltage / Frequency

230 VAC / 50 Hz

Output Connectors

2 x Schuko

Wave Form

Pure Sine Wave

Power Factor / Transfer Time

0.85 / < 4 ms

Battery Type

1 x 12 V (external)

Dimensions (L x W x H)

338 x 146 x 170 mm


6.4 kg

Noise Level

< 56 dB

Remote Management


Application & Use

Extended Runtime UPS  are specifically built for gas boilers. However, they can be used in a multitude of applications around the house.


Gas Boilers


Water Pumps

Household Electronics


Fuel Generator Compatible

Komplet 6 Protection

Komplet 6 is TED Electric's safety standard. We offer extensive protection for our products & your electronic devices

Over Voltage

Under Voltage



Short Circuit


Interested in getting more details about this product or find a distribuitor?
