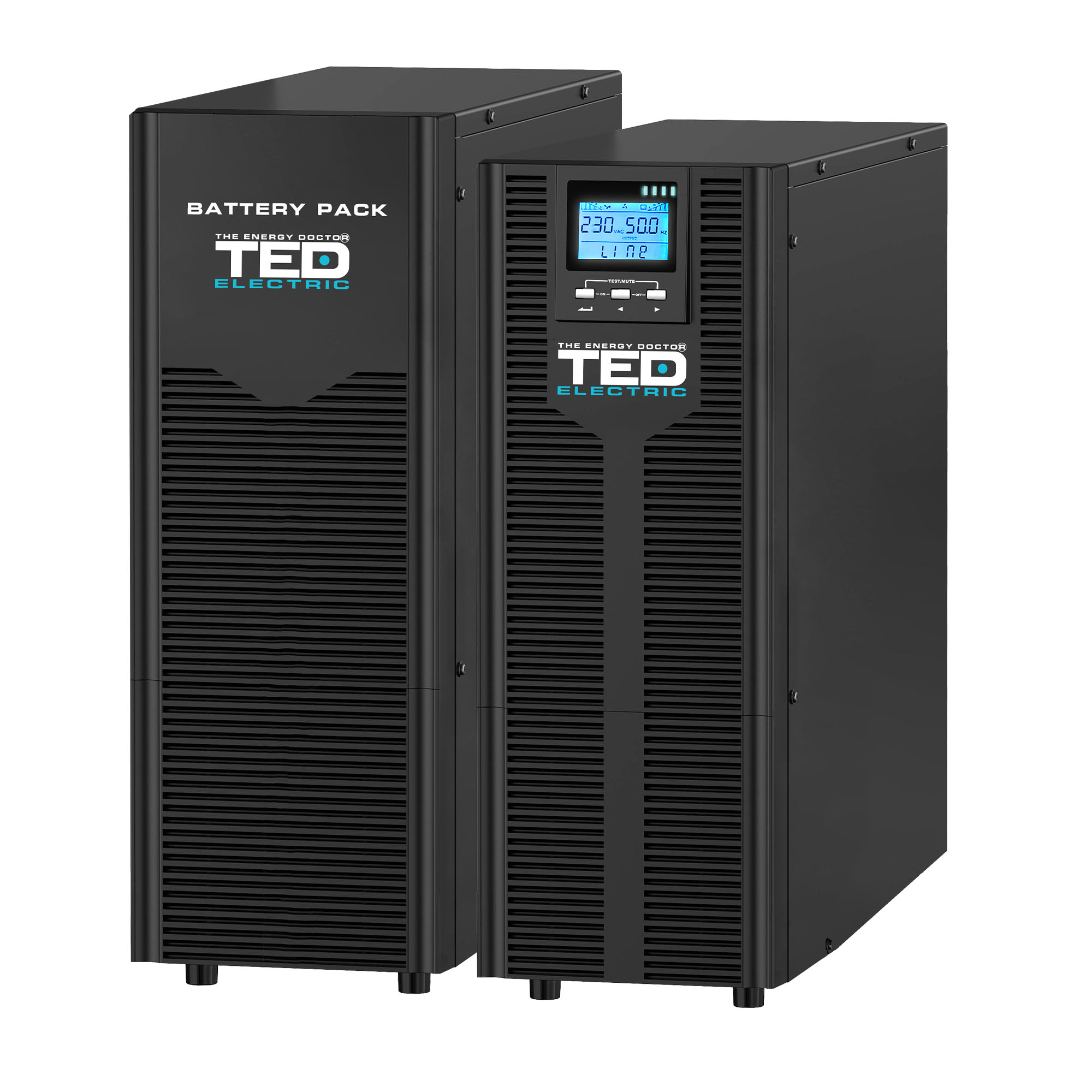

20kVA 20kW 3-Phase (3:1) UPS Online – LCD Display – Terminal Block – TED Electric

Three phase online UPS provides superior protection & back-up time using double conversion technology, built for sensitive electronics. It provides stable (integrated AVR) clean 230v output through modular terminal block. It has an intuitive interface: LCD display + navigation buttons. Remote management via USB for Windows, Linux, Unix & BSD. Wheels for easy maneuver + braking system. Other features include Cold Start Function, Auto restart (while AC is recovering), Smart Battery Management and Off-Mode Charging.

Product code: TED001665

Technical Specification


20 kVA / 20 kW

Input Voltage / Frequency

300V-499 VAC / 40-70 Hz

Output Voltage / Frequency

230 VAC / 50 – 60 Hz

Output Connectors

Terminal Block

Wave Form

Pure Sine Wave

Power Factor / Transfer Time

1 / 0 ms

Battery Type

20 x 12 V / 7-9 Ah (alternative: 40 x 12 V / 7-9 Ah)

Dimensions (L x W x H)

UPS – 190 x 495 x 515 mm / Battery pack – 180 x 450 x 600


94.5 kg incl. 20 pcs. battery / 144.5 kg incl. 40 pcs. battery

Noise Level

< 55 dB

Remote Management


Application & Use

Online UPS offer the ultimate protection for mission critical professional electronic equipment.  Ideal for online services, data centers communication & broadcasting, & financial institutions.

Office Equipment

Servers & Networks

Audio-Video Equipment


Manufacturing Tools

Komplet 6 Protection

Komplet 6 is TED Electric's safety standard. We offer extensive protection for our products & your electronic devices

Over Voltage

Under Voltage



Short Circuit
