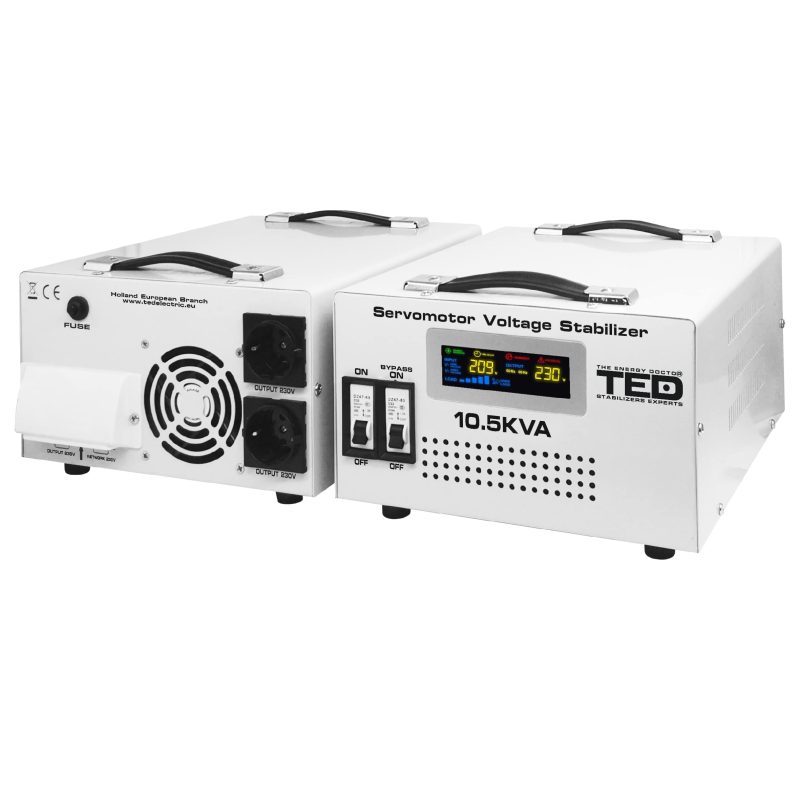

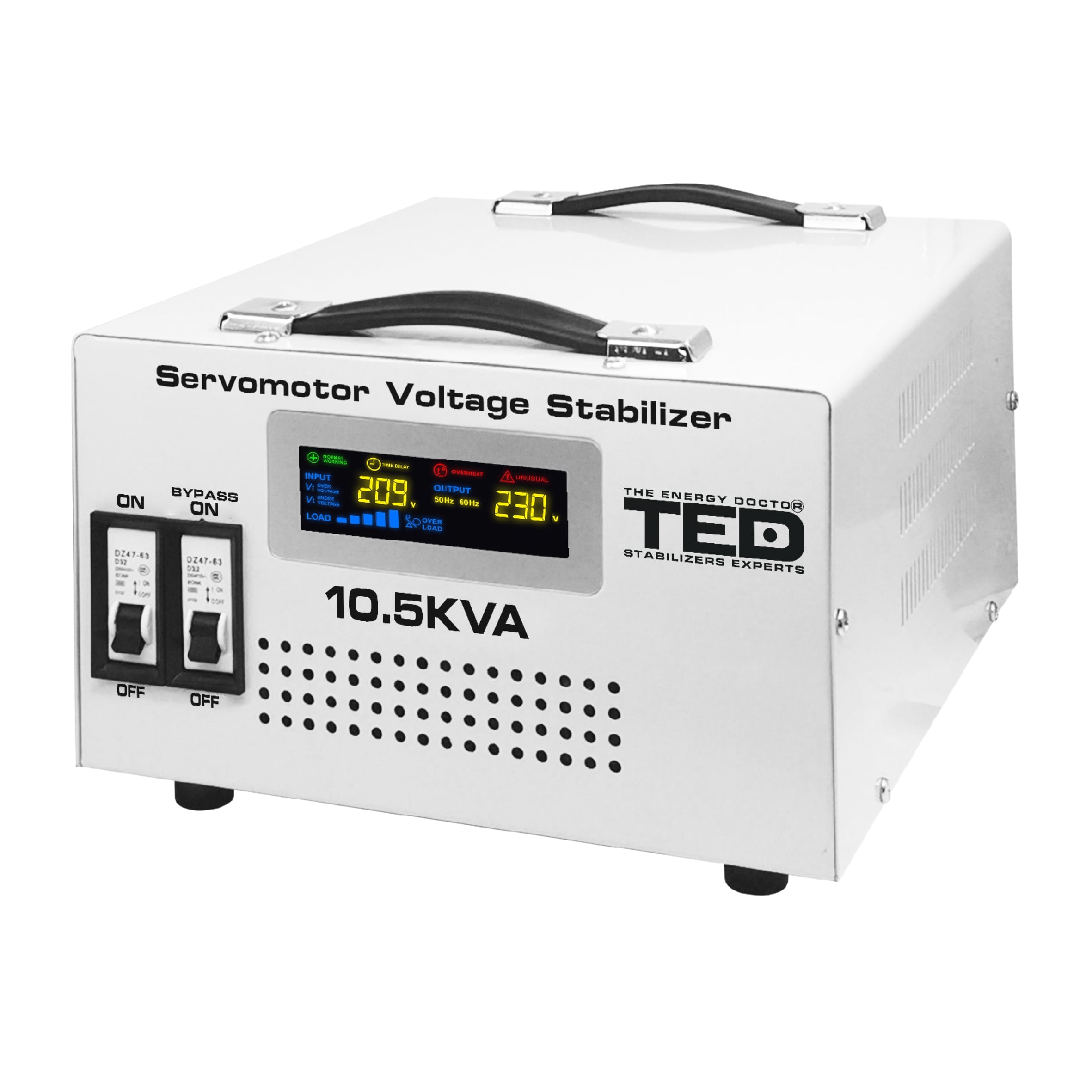

10.5kVA 6000W Servomotor Voltage Stabilizer – LCD Display – 3 x Outputs – TED Electric
Single phase voltage regulator / stabilizer using servomotor technology for accurate stabilization & wide voltage range control. It provides 230V output & protects any electronic equipment from voltage faults & spikes. MCU controlled circuit & pure copper windings ensures maximum reliability. It offers 2 Schuko output and terminal block. Intuitive LCD display conveys essential parameters. Delay time is set to 6s.
Product code: TED000033
Technical Specification
| Power | 10500 VA / 6000 W |
|---|---|
| Input Voltage / Frequency | 130-260 VAC / 50-60 Hz |
| Output Voltage / Frequency | 230 VAC / 50 Hz |
| Output Precision | ±2% |
| Output Connectors | 2 x Schuko + 1 x Terminal Block |
| Wave Form | Pure Sine Wave |
| Dimensions (L x W x H) | 338 x 302 x 210 mm |
| Weight | 22.6 kg |
| Noise Level | < 20 dB |
Application & Use
SVC servomotor voltage stabilizers are ideal for specialized sensitive electronic equipment in fields that require precise output and high quality control: data centers, medical facilities, telecommunications, manufacturing processes and many others.
Audio-Visual Equipment
CNCs, Robotics
MRI, CT scanners
HVAC Systems
Komplet 6 Protection
Komplet 6 is TED Electric's safety standard. We offer extensive protection for our products & your electronic devices
Over Voltage
Under Voltage
Overload
Overheating
Short Circuit
